ANALOG TDS SENSOR WATER CONDUCTIVITY SENSOR TESTER LIQUID DETECTION WATER QUALITY MONITORING

Description :

The Analog TDS Sensor Water Conductivity Sensor Tester is a device designed to measure the total dissolved solids (TDS) and conductivity of water. It is commonly used for water quality monitoring in a variety of applications, including aquariums, hydroponic systems, and industrial processes.

The sensor consists of two probes that are immersed in the water being tested. As the water flows through the probes, the sensor measures the electrical conductivity, which is directly related to the TDS level of the water. The sensor is highly accurate and provides real-time measurements of TDS and conductivity, making it an effective tool for monitoring water quality.

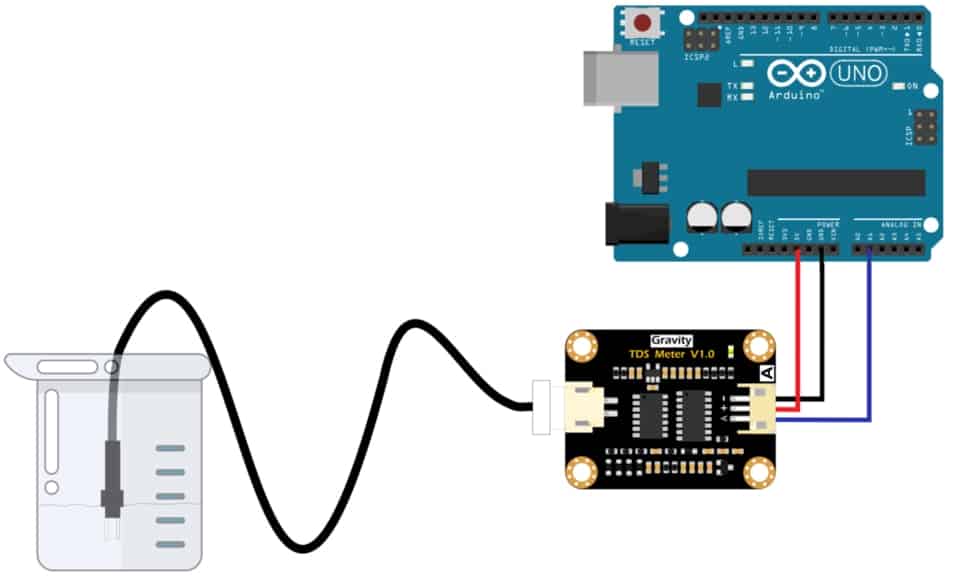

The Analog TDS Sensor Water Conductivity Sensor Tester is easy to use and requires no external power source. It can be connected to a variety of devices, such as microcontrollers, Arduino boards, or other digital devices, using the analog output. The output signal can be calibrated to match the TDS or conductivity of the water being tested, allowing for highly precise measurements.

Overall, the Analog TDS Sensor Water Conductivity Sensor Tester is a reliable and effective tool for water quality monitoring in a variety of applications. It is easy to use, highly accurate, and provides real-time measurements of TDS and conductivity, making it an essential tool for anyone who needs to monitor water quality on a regular basis.

Specification :

• Measurement range: 0-9990 ppm (TDS), 0-9990 µS/cm (conductivity)
• Accuracy: +/- 2%
• Operating voltage: 3.3-5.5VDC
• Operating current: <10mA
• Operating temperature: 5-80°C
• Probe material: Stainless steel
• Cable length: 25cm
• Connector: 3.5mm audio jack.
