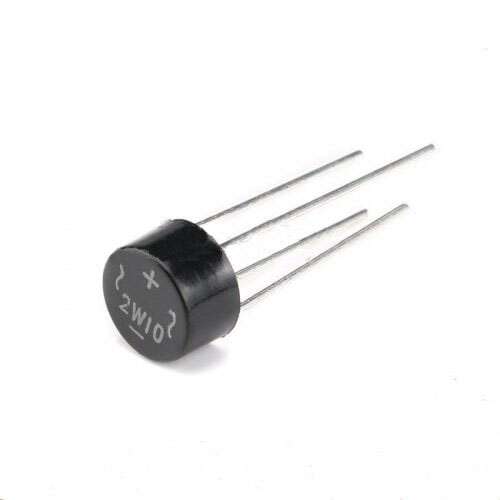

The 2W10 is a Single Phase Bridge Rectifier . The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this IC can handle is around 2A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.0V. It has high efficiency and a surge current capability of 60A. If you are looking for a compact IC for rectification application this can be a good choice.
Features
- Diffused Junction
- High Current Capability
- High Reliability
- High Surge Current Capability
- Ideal for Printed Circuit Boards
SPECIFICATION
| Model | 2W10 |
| Type | Bridge Rectifier Diode |
| Dc blocking voltage | 1000 v |
| Max Vrms value | 700 v |
| Operating Temperature range | -55°C to 150°C |
| Storage Temperature range | -55°C to 150°C |
