DRV8833 Motor Driver Modules, 1.5A

In stock
JODĀ 3.000 JODĀ 5.000

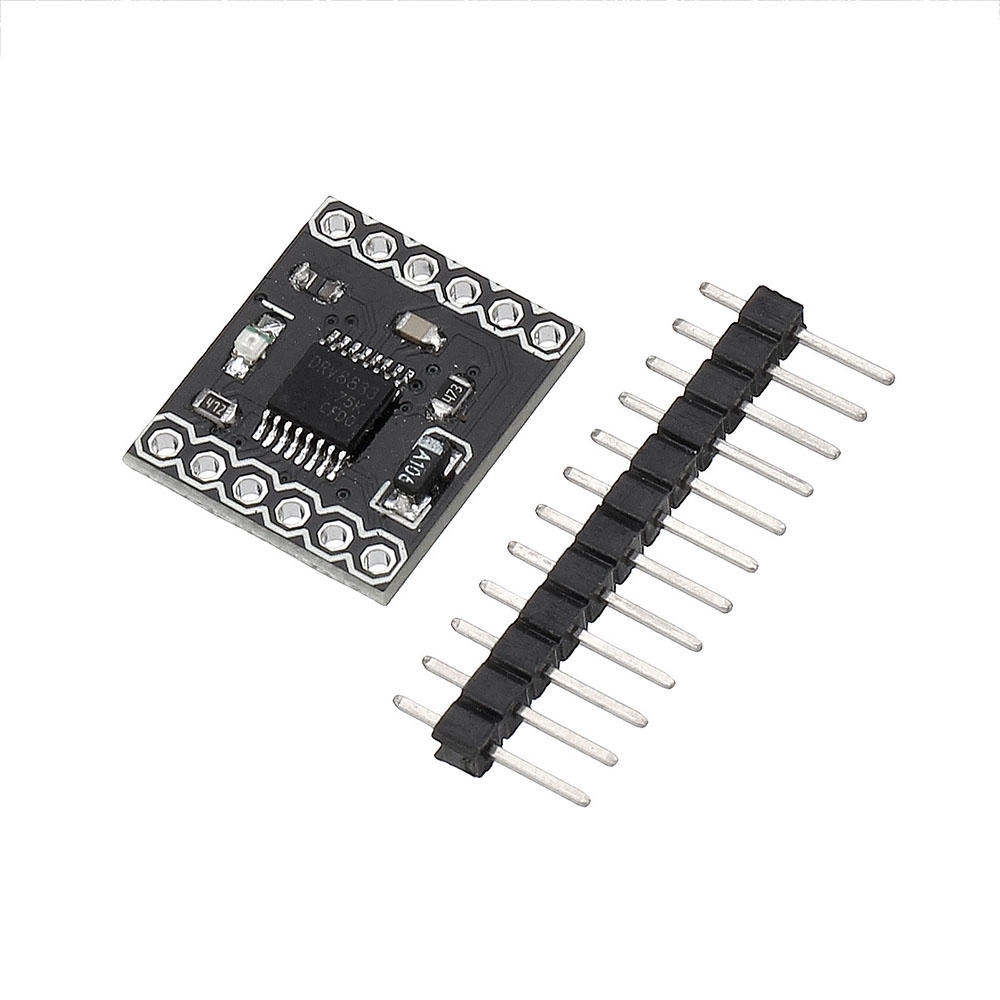

The DRV8833 Module is a two-channel H-bridge motor driver breakout board that can be used to drive two DC motors or one stepper motor. It has a total of 12 pins, four of which are output and four of which are input. Each output can supply up to 2A peak current with internal limiting, with overcurrent, overtemperature, short-circuit and undervoltage protection.



DRV8833 Module Pinout

Pin Number

Pin Name

Pin Description

1

EEP

Sleep mode input, active high

2

OUT1

First output of the 1’st H-Bridge

3

OUT2

Second output off the 1’st H-Bridge

4

OUT3

First output of the 2’nd H-Bridge

5

OUT4

Second output off the 2’nd H-Bridge

6

ULT

Logic low when in fault condition

7

IN1

Logic input controls state of OUT1

8

IN2

Logic input controls state of OUT2

9

VCC

Supply Voltage (Range 2.8 - 10.8V)

10

GND

Supply Ground

11

IN3

Logic input controls state of OUT3

12

IN4

Logic input controls state of OUT4



DRV8833 Features and Descriptions

  • Dual-H-Bridge Current-Control Motor Driver
  • 1.5-A RMS, 2-A Peak per H-Bridge
  • Parallel Output Configuration for 3-A RMS, 4-A Peak
  • Wide Power Supply Voltage Range 2.7 to 10.8 V
  • PWM Winding Current Regulation and Current Limiting
  • Thermally Enhanced Surface-Mount Packages
