- Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
- Be suitable for notebook computer, product line maintenance, be used easily on business.
- 23 measurement functions, PASS/FAIL Check, be suitable for technical application.

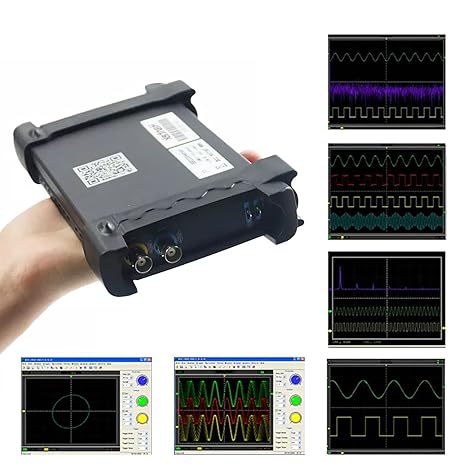

- Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
Specification：
Channel: 2 Channels
Bandwidth: 20MHz Max.
Sample Rate: 48MSa/s
Storage Depth: 1M
Vertical Resolution: 8 Bit
Impedance: 1MΩ 25pF
Coupling: DC
Voltage Range: 20mV-5V, 8Steps
Vertical Accuracy: ±3%
Timebase Range: 1ns-5000s, 39 Steps
Vertical Adjustable: Yes
Input Protection: Diode Clamping
X-Y: Yes
Horizontal Mode: Auto, Normal and Single Trigger Slope: +/-
Trigger Level Adjustable: Yes
Trigger Source: CH1, CH2
Pre Trigger: 0-100%
Sampling Selection: Yes
Waveform Display: Port/Line, Intensity Network: Open/Close
Cursor Measurement: Yes
Math: FFT, Invert, Addition, Subtraction, Multiplication, Division
Cursor Display: Frequency, Voltage
